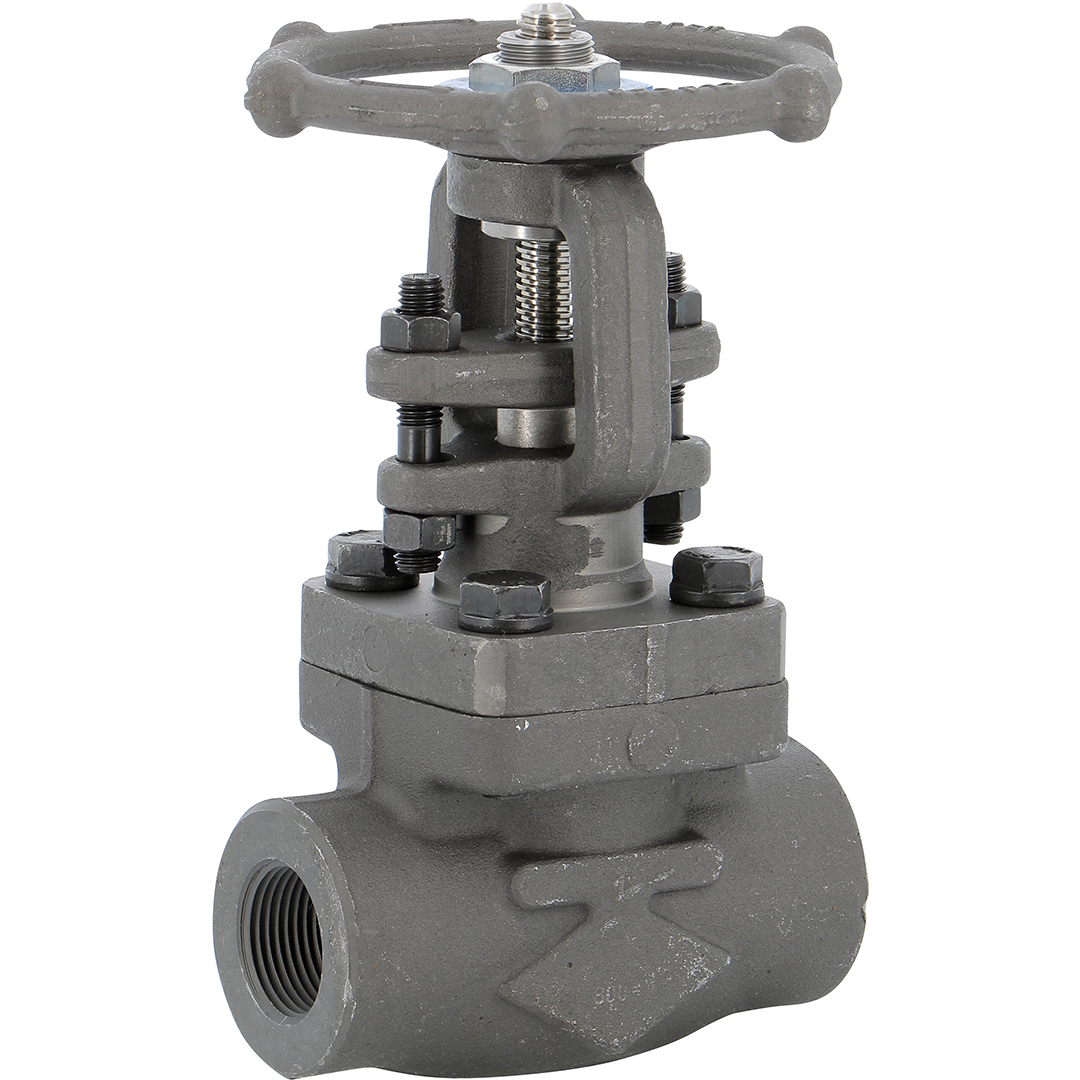

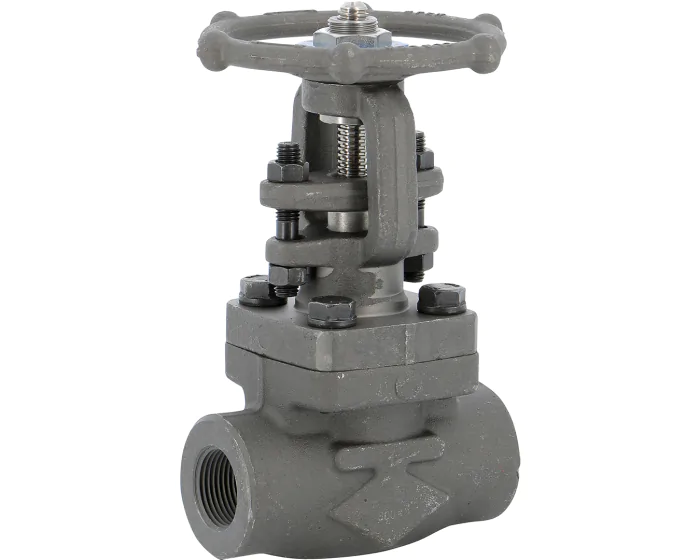

The 113 series gate valve, forged steel, Class800, 1/2 stellite, TRIM 8, F/F NPT, with bolted bonnet, standard bore for steam, high pressure and oil.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 8 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 410 |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 3.7 |
| Body material | Carbon steel ASTM A105 N |
| Gate material | Stainless steel ASTM A182 F6 |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 136 |
| Connections | NPT FF |
| Seats | Stainless steel ASTM A276 Tp 410 stellite |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Black |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Carbon steel ASTM A105 N Standard 3/8'' | 113003 | S1007278 |
€46.90
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 1/2'' | 113004 | S1007279 |
€46.90
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 3/4'' | 113005 | S1007280 |
€51.94
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 1'' | 113006 | S1007281 |
€74.46
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 1''1/4 | 113007 | S1007282 |
€102.51
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 1''1/2 | 113008 | S1007283 |
€132.69
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 2'' | 113009 | S1007284 |
€180.59
(excl. btw)
|
add to cart |
